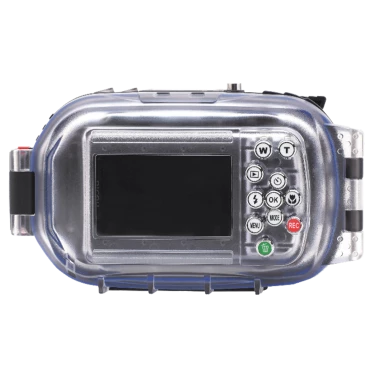

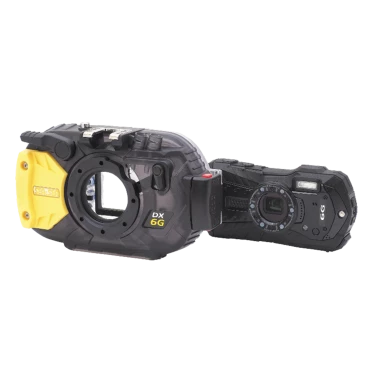

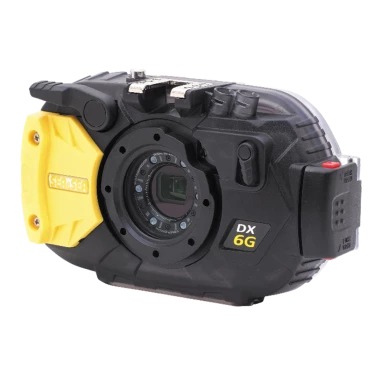

DX-6G Underwater Camera And Housing Set

The 6G is an all-weather,rugged and reliable camera for all adventuers.
Take it mountain climbing,skiing,fishing,and scuba diving – boasting a depth rating of 14m/46ft and drop impact resistance of 1.6m/5ft.
The camera will also function at temperature as low as -10℃/14°F.

5x zoom lens from wide-angle 28mm reproducing high-definition and crystal-clear images.
CMOS with 16 megapixels together with high-performance image engine to produce low-noise and wide dynamic range images.

Equipped with macro mode. As close as 1cm/0.4inch to the subject.
Enables you to bring the lens as close as 1cm/0.4inch to the subject without a close-up lens,enabling enlarged picture of a small objects.

Equipped with Underwater Mode for optimum underwater photos and videos.
This mode uses white balance optimized for underwater photos,making colors appear more natural by adding reds that tend to get lost in photos taken underwater.

Records High Definition video.
Records H264/30fps High Definition movie.
As equipped with HDMI terminal(typeD),the camera can be connected to a television with ease.

Comes with Macro ring diffuser as standerd
Diffuses light from the built-in flash evenly,illuminating whole image when macro photo is taken.

Wide-angle conversion lens x0.6. Can be attached and detached underwater.
When the optional SS bayonet wide-angle conversion lens WCL06 is mounted, the angle of view will increase providing stunning images. When the bayonet mount is used, the lens can be attached and detached with ease, so as not to miss any critical shots.

DX-6G Other Features
Equipped with two fiber-optic cable sockets for external strobes.
Compatible strobes: YS-03, YS-D1 in slave TTL mode and YS-D2 in slave TTL mode or YS-D2 sold after May 2019(serial namber 170909685-and abobe) in DS-TTL mode (in customize mode – E position).
* YS-01 is not compatible.
Equipped with Flash Shutter Lever. When an external strobe such as YS-03 is used, light from the camera’s built-in flash can be shaded.

Specifications
DX-6G
Housing Specifications
[Construction] Polycarbonate
[Depth rating] 55m / 180ft
[Dimensions (WxHxD)] 165 x 93 x 61.5 mm / 6.5 x 3.7 x 2.4 inches
[Weight] Approx. 412g / 15oz (Housing only) / 605g (including camera,battery,SDcard)
[Under Water Weight] Approx.30g

6G Camera Specifications website reference

Lens : RICOH lens, 11 elements in 9 groups (5 aspherical elements)
Focal Length : 5 – 25 mm(in 35mm format equivalent) Approx. 28 – 140mm Maximum Aperture F3.5(W) – F5.5(T) Zoom Optical Zoom 5X Digital Zoom approx. 7.2X
Intelligent Zoom : approx. 7.5X at 7M, approx. 36X at 640 (including optical zoom)
Motion Blur Reduction : Still Pixel Track SR Hi-sensitivity anti-shake mode (Digital SR) Movie Movie shake reduction mode (Movie SR)
Focus Type : 9-point AF, Spot AF, Auto tracking AF
Focus Range : (From lens face) Standard: 0.5m – infinity / 1.64ft. – infinity (entire zoom range)
Macro:0.1 – 0.6m / 0.33 – 1.97ft. (entire zoom range)
1cm Macro:0.01 – 0.3m / 0.03 – 0.98ft. (middle zoom position)
Infinity-landscape, Pan Focus, Manual Focus: available
Face detection : Face Detection AF&AE is available for all modes up to 32 faces. Smile Capture, Self-portrait Assist, Self-portrait Assist + Smile Capture, Blink Detection
Pet detection : Detect up to 1 pet’s face(auto)
Number of Effective pixels : Approx. 16 megapixels
Image Sensor : 1/2.3″ CMOS
Number of Recorded pixels : Still 16M(4608 x 3456), 12M(1:1)(3456 x 3456), 12M(16:9)(4608 x 2592), 7M(3072 x 2304), 5M(16:9)(3072 x 1728), 5M(2592 x 1944), 4M(16:9)(2592 x 1464), 3M(2048 x 1536), 2M(16:9)(1920 x 1080), 1024(1024 x 768), 640(640 x 480)
* In Digital Microscope mode, recorded pixels is fixed to 2M(1920×1080).
* In continuous shooting mode(High), recorded pixels is fixed to 5M(1600×1200) or 4M(2592×1464) per frame.
* In Report mode, select from 3M (2048 x 1536), 2M (1600 x 1200) or 1280 (1280 x 960).
* In Original Frame mode, recorded pixels is fixed to either 5M(2592　x　1944) or 4M(2592 x 1464).
Movie 1920（1920 x 1080）: approx. 30fps, 1280（1280 x 720）: approx. 60/30fps
Sensitivity : (Standard Output Sensitivity) AUTO, Manual (ISO 125 – 6400)
White Balance : Auto, Daylight, Shade, Tungsten light, Fluorescent light(D:Daylight Color, N:Daylight White, W:White Light), Manual
Display : 2.7″ Wide LCD, approx. 230K dots, AR Coating(Cover only)
Exposure Control : Metering System Multi-segment metering, Center-weighted metering, Spot metering
Exposure Compensation : ± 2EV ( 1/3EV steps)
Scene modes : Auto Picture, Program, HDR, Handheld Night Snap, Movie, High Speed Movie, Digital Microscope, Landscape, Flower, Portrait, Underwater, Underwater Movie, Interval Shot, Interval Movie, Surf & Snow, Kids, Pet, Sport, Night Scene, Night Scene Portrait, Fireworks, Food, Digital SR, Report, Green
Playback modes Slideshow, Image Rotation, Small Face Filter, Ink Rubbing Filter, Collage, Digital Filter(B&W / Sepia, Toy Camera, Retro, Color, Extract Color, Color Emphasis, High Contrast, Starburst, Soft, Fish-eye, Brightness, Miniature), HDR Filter, Original Frame, Movie Edit, Red-eye Edit, Resize, Cropping, Image Copy, Protect, Start-up Screen
Shutter Speed : 1/4000 – 1/4sec.(Mechanical and electronic shutter), 4sec at most. (Night Scene mode setting)
Built-in flash Modes : Flash-on and Flash-off modes. “Red-eye” compensation function employs a pre-discharge.
Flash Range : Wide:approx. 0.2 – 5.5m / 0.66 – 18 ft. (ISO Auto)
Tele:approx. 0.2 – 3.5m / 0.66 – 11 ft. (ISO Auto)
Drive Modes : One shot, Self-timer, Continuous Shooting, Burst Shooting, Remote Control, Auto Bracketing
Storage Media :Built-in Memory (approx. 68MB), SD/SDHC/SDXC Memory Card Eye-Fi Card
Power Source :Rechargeable D-LI92 lithium-ion battery
Battery life Still*: approx. 300 shots (Rechargeable Lithium-ion battery)
Playback**: approx. 260 min. (Rechargeable Lithium-ion battery)
Interfaces : USB2.0(Micro-B), HDMI output terminal(Type D)
Water proof / Dustproof Equivalent to JIS Class 8 waterproof and JIS Class 6 dustproof capabilities
Dimensions : Approx. 122.5 (W) x 61.5 (H) x 29.5 (D)mm /4.8 (W) x 2.4 (H) x 1.2 (D) inches (excluding controls and projections)
Weight : With battery & SD card Approx. 193g / 6.8 oz. (loaded and ready)
Body : Approx. 173g / 6.1 oz.(without battery and SD memory card)
Others
* Intelligent zoom not applicable under Report Mode
* Waterproof (Up to 14m (45ft.) for 2hours)
* Shock proof (Up to 1.6m (5.2ft.))
* Operating Temperature -10℃ to 40℃
* Eye-Fi Compatible
* Macro light
* Changing Folder name function supported
* HDMI Type D (Micro) port
* Remote control compatible
* Outdoor View Setting
* Recording capacity shows approximate number of shots recorded during CIPA-compliant testing. Actual performance may vary depending on operating conditions.
** According to the result of RICOH IMAGING in-house testing.
